Name: CE Approved Golf Buggy Electric Golf Carts New Model Golf Cart
SKU: 436
Availability: InStock

CE Approved Golf Buggy Electric Golf Carts New Model Golf Cart

$10,500.00

Power:	Electric
Application:	Factory, Station, Wharf, Airport, Mall, Hospital, School, Hotel, Golf Course, Amusement Park, Scenic Spot
Color:	Violet, Rose Red, Black, Yellow, Green, Blue, Red, White
Style:	Multipurpose
Type:	Sightseeing Car
Specification:	317512191828mm /Carlisle 18*8.5-8 6 layers

Product Description

Standard System	3.7kW 5.0hp DC system	Battery	8v *6pcs 48V
Tyre	Carlisle 18*8.5-8 6 layers	Endurance mileage	70-90km
Max forward speed	23km/h	Charging time	8-10 hours
Motor	USA KDS DC motor	Controller	Curtis 1266A-5301
Transaxle	Italian GRAZIANO	Charger	Offboard/17A regulator
Passenger capacity	4	Overall dimensions	317512191828mm
Max. loading weight	360kgs	Net weight(with batteries)	500kgs
Climbing capacity (Full load)	25%	Max. brake movement	2.4m
Ground clearance	114mm	Min turning radius	3.9m
F / R track	860/970mm	Wheelbase	1670mm
Body	“PP”engineering plasitc	Frame	Aluminum alloy frame
Roof	ABC blow molding with roof support Imbedding steel tube
Large Seats	1) plastic backrest + cushion 2) rubber armrest 3) plastic seat bottom

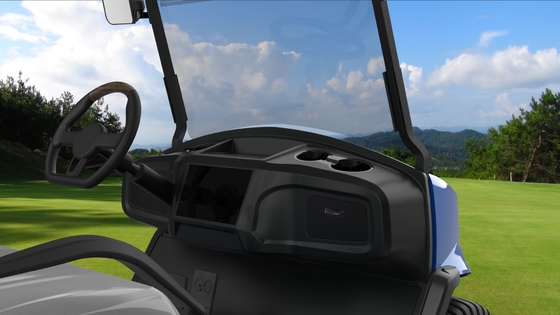

Dashboard	cup holder ,battery capacity,indicator,ignition key
Steering system	self-adjust rack-and pinion steering
Front / Rear suspension	Independent spring suspension / Coil spring hydraulic shock absorber
Brake system	Rear wheel mechanical drum
