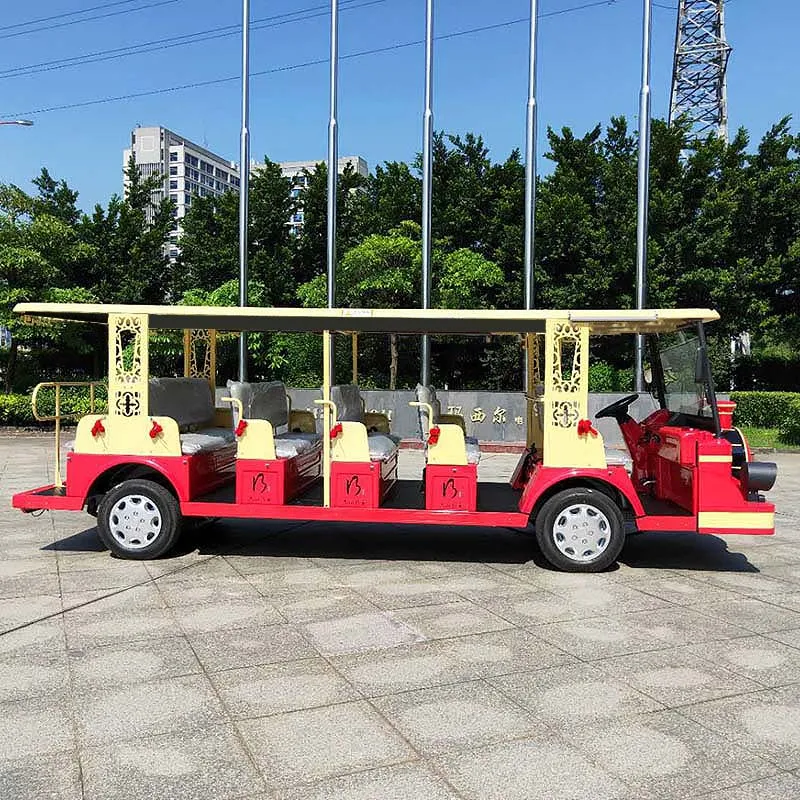

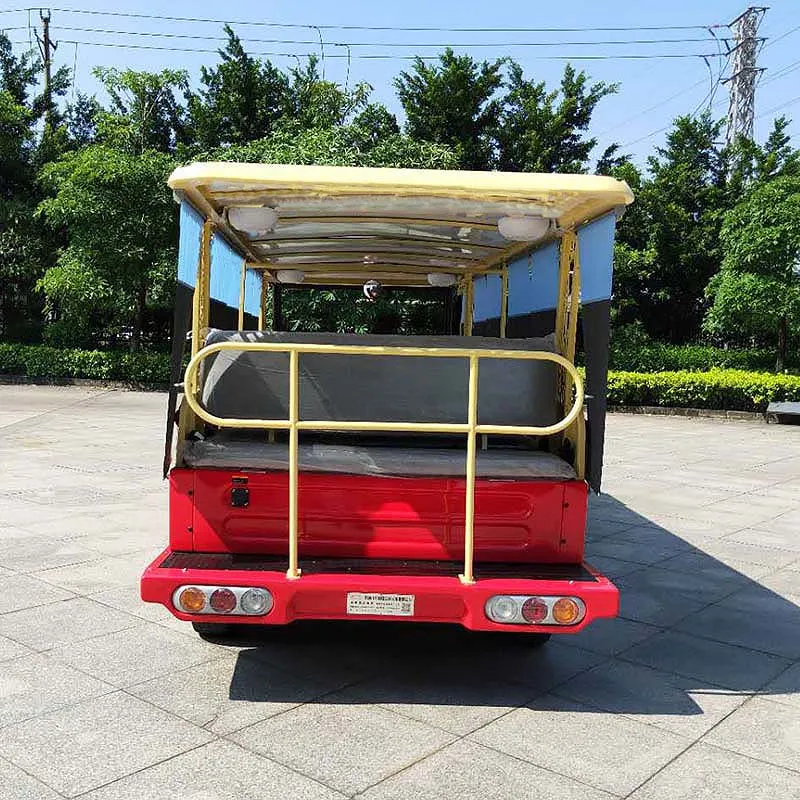

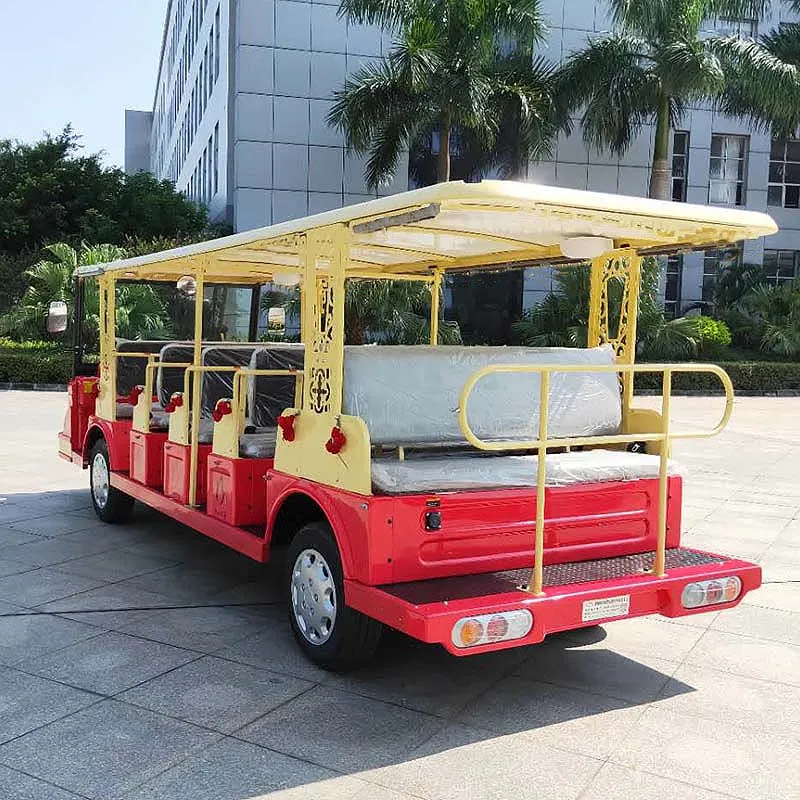

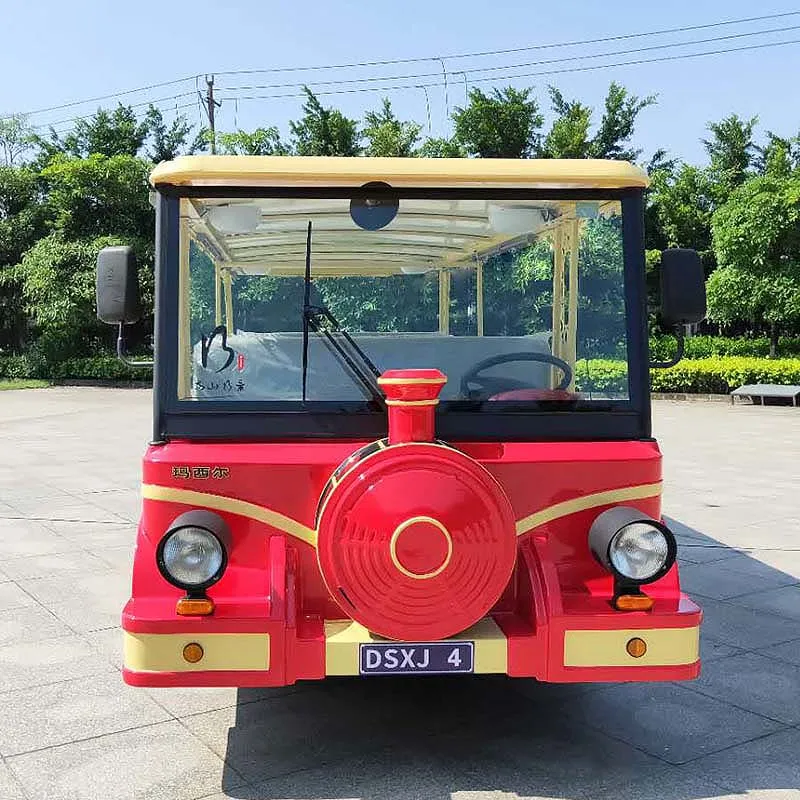

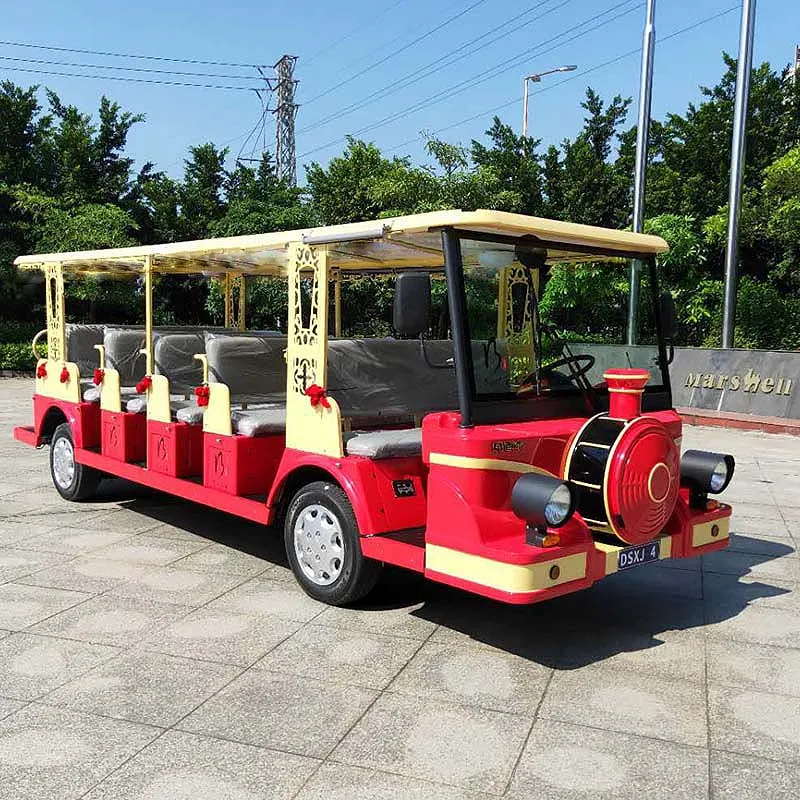

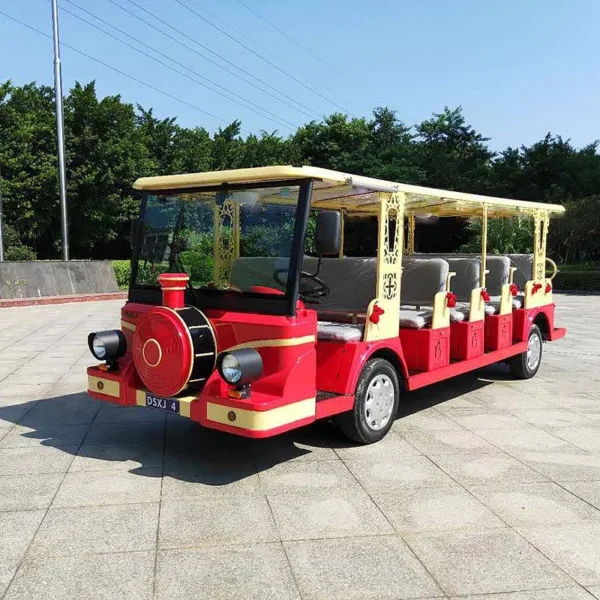

Name: CE Certificated Electric Shuttle Bus Sight Seeing Car (DN-23B)
SKU: 97
Availability: InStock

Electric Sightseeing Bus Features:

1. Standard color: White; arractive design and powerful in appearance, with strong carrying capacity and lower noise;

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;

3. Small turning radius; and smart steering system; Whole style steel rear axle;

4. Can be easy modified to transportation vechicles;

5. CE certificate for whole carts;

6. Import main parts: Maintenance free batteries and Curtis controller(From USA);

7. Four wheels hydraulic braking system and independent parking brake.

Electric Sightseeing Bus Specifications:

Battery	6V 225AH*24pcs	Minimum turning radius (m)	8.5
Motor	72V 9KW AC system	Max. climbing ability (loaded)	15%
Controller	72V550A	Overall dimensions(mm)	590018002000
Charger	72V	Max. loading weight(kgs)	1955
Suspension:	Macpheron strut suspension	Net weight(kgs)	2000
Steering	Rack&Pinion steering	Chassis	Steel
Braking system	Four wheels hydraulic braking system	Wheelbase(mm)	3420
Passenger capacity	23	Ground clearance(mm)	100
Range (loaded) (km)	120km	Tires:	195/70R 15C
Max. speed (km/h)	25	Quantity per Container	1pcs / 20ft. 2pcs / 40HQ

Electric Sightseeing Bus Configuration:

STANDARD CONFIGURATION:
DESCRPTIONS	REMARKS
Body	Fiber glass body
Roof	Steel frame + fiber glass cover
Windshield	One-piece see-through laminated windshield with wiper
lights ystem	front lights, tail lights, turing lights, brake lights, fog lights
mirrors	side mirrors, inner mirror
Dashboard	speedo meter combined with battery capacity indicator, hours meter, current meter, voltage meter, range meter
OPTIONAL CONFIGURATION/ACCESSIOIRIES:
Trojan battery, AC electric system 48V/72V, Rear seat, Full enclosure weather curtains, Sunshade Curtain, Seat belts, Loud speaker, CD player, Solar panel on top, Aluminum rim wheels, Front disc brakes, rear wheel drum brakes, Right hand steering
COLORS:
Standard color is blue&white, also can do the other colors
