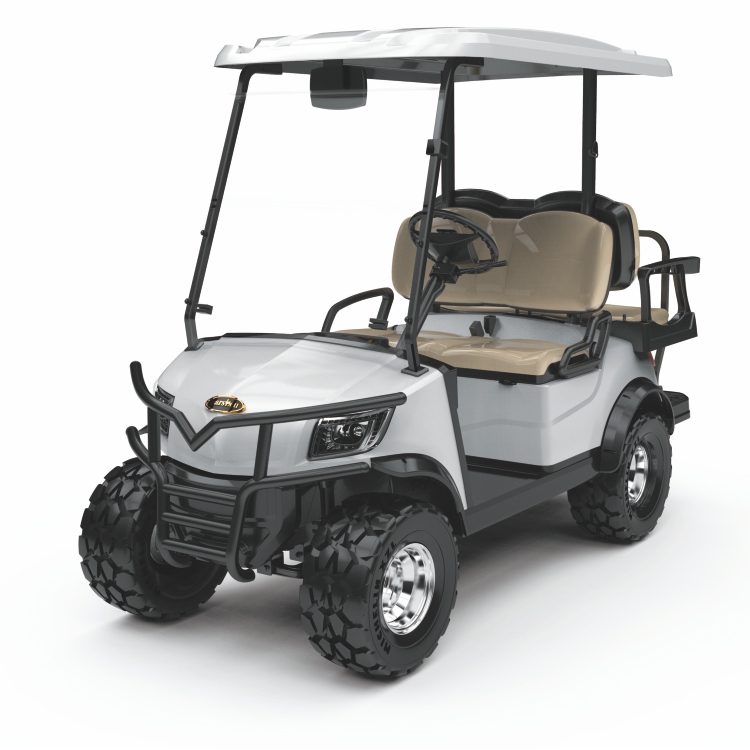

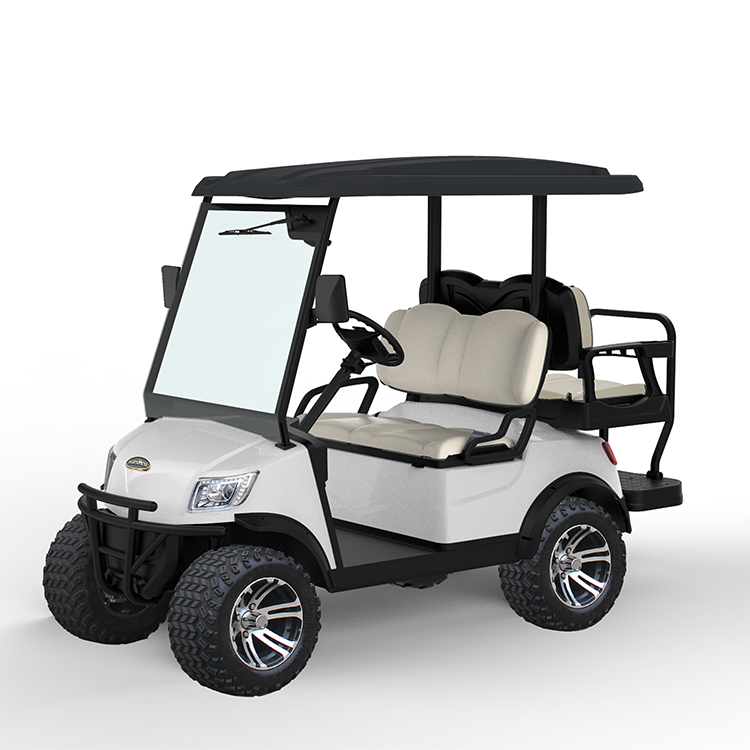

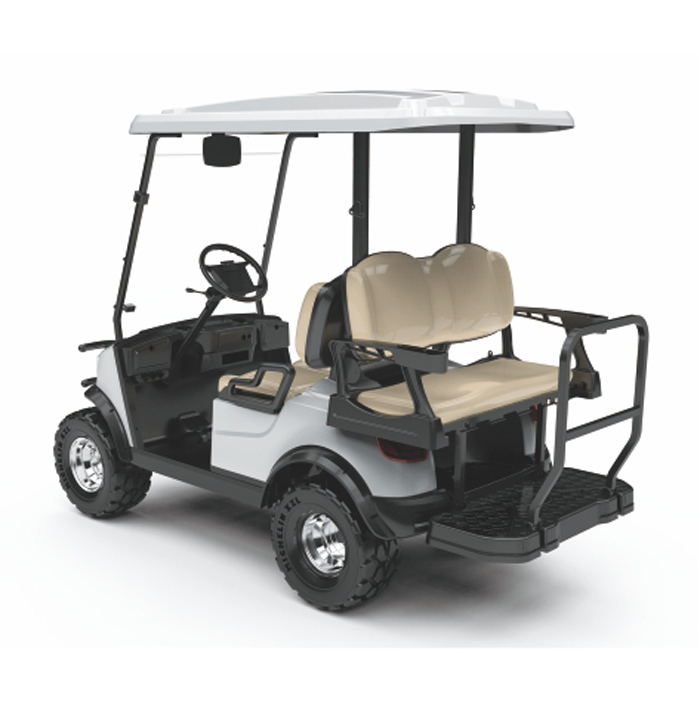

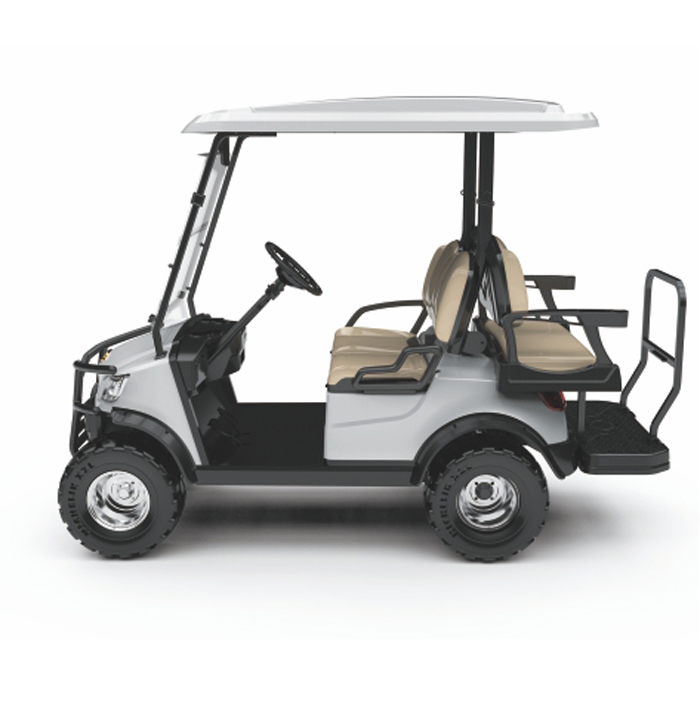

electric hunting car features:
1.Utility car,US battery(imported from USA), Delta-Q chargers(From Canada); Curtis controller(From USA);
2.Utility cart,Leaf spring with Hydraulic shock absorbers;
3.Accelerator: Adjustable inductive accelerator continuously variable speed system;
4.You can choose 4 wheel hydraulic disk or Rear mechanical drum brake and Regeneration brake collocation.
electric hunting car specification:
DH-M4 | |
Motor | AC 48V 4KW |
Controller | Curtis 1232SER 48V 400A |
Battery | Leoch AGM Battery
8V 180Ah/3HR * 6 PCS |
Charger | On Board Charger 48V 25A |
Ground Clerance | 170 mm |
Wheel base | 1670 mm |
Front Tread/Rear Tread | 964 mm / 1004 mm
1060 mm / 1060 mm ( 12 inch aluminium rim) |
Cargo box dimension and carry capacity | |
Curb Weight | |
Speed (km/h) | 30 KM/H |
Brake System | |
Brake Distance | 4.5 m |
Turning Radius | 3.1m |
Climbing Capacity | 30% |
Driving Range | 90 km |
Tire | 10 inch steel rim wheel terrain tire |
Dimension | 2820 * 1310 *1980 mm |
Loading Quantities | |
Optional | 1. Battery: Available for Trojan T 875, T106, US Battery 8V and 6V 2. Caddy Cooler; 3. Ball washer 4.Side view mirror and rear view mirror; 5.Seat belts(Two points retractable or three points retractable) 6. Rain Cover; 7. Sunshine Curtain; 8. 10 inch aluminium alloy rim with 205/50-10 size turf tire; 9. Speedo(Multifuction, can show time, speed, driving range ,battery capacity and rear view when reverse) 10. Rear Cargo box; |
