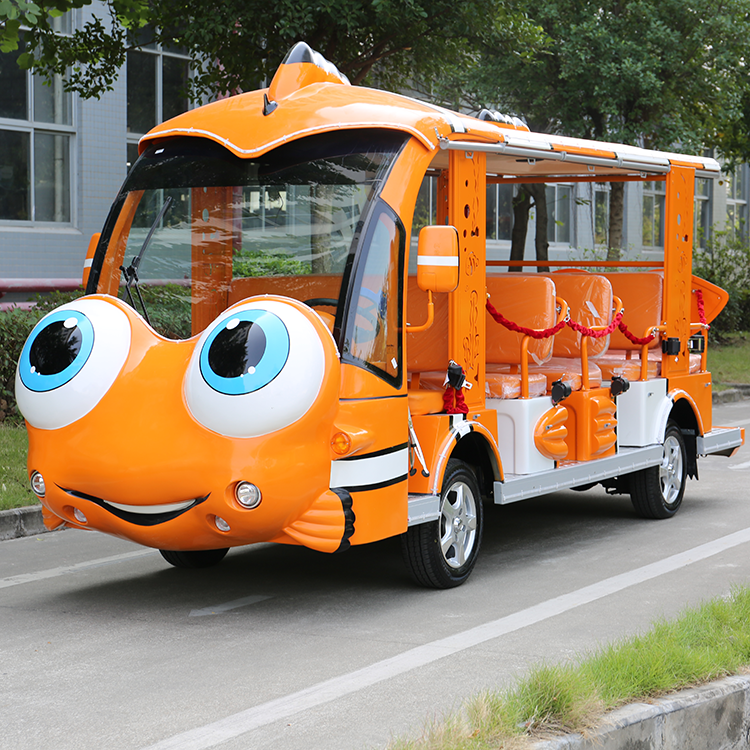

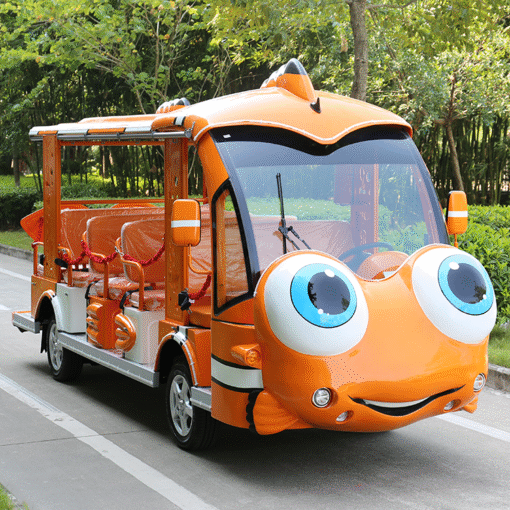

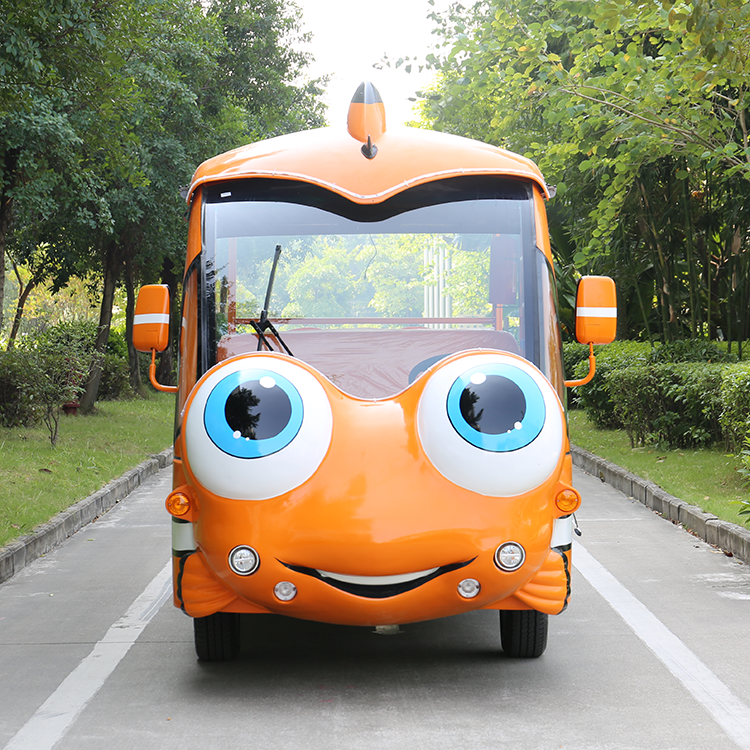

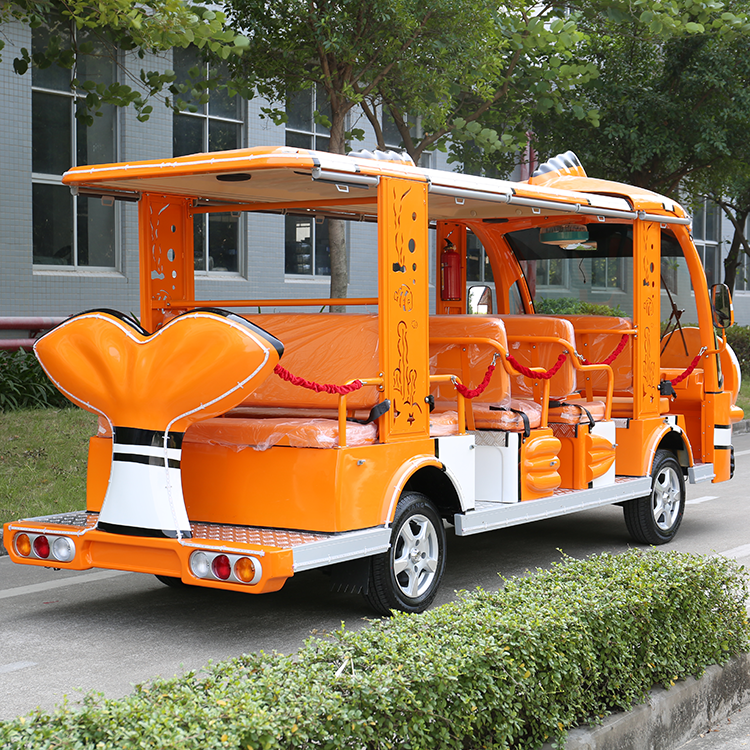

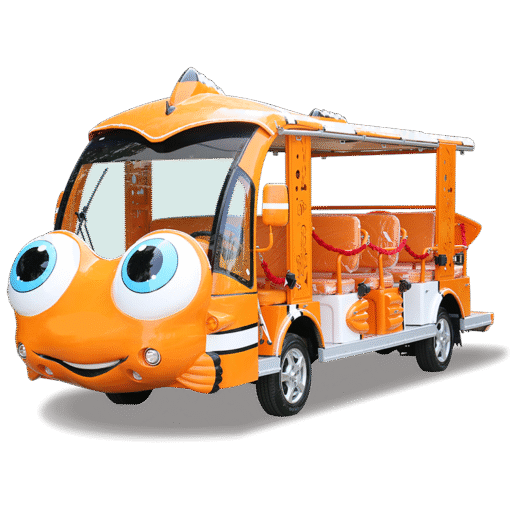

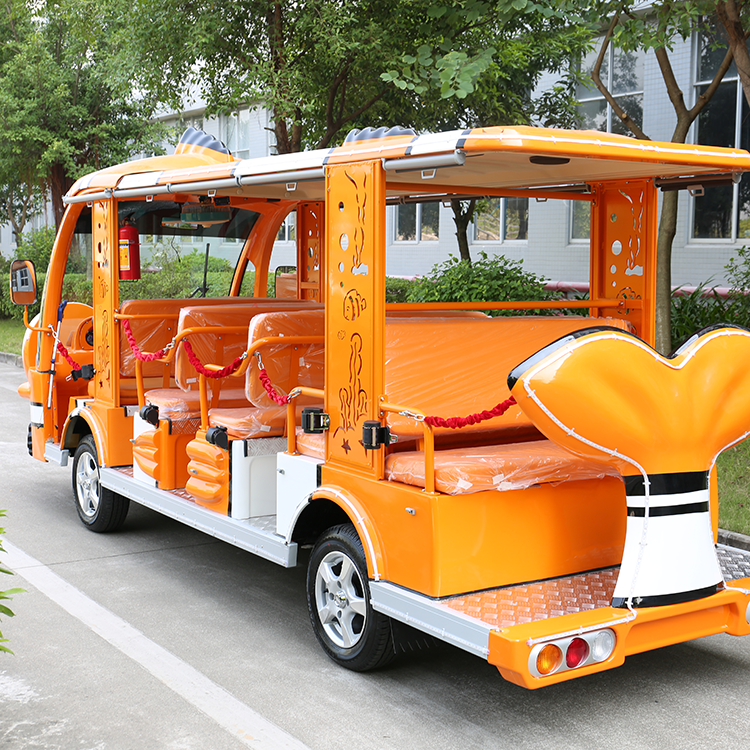

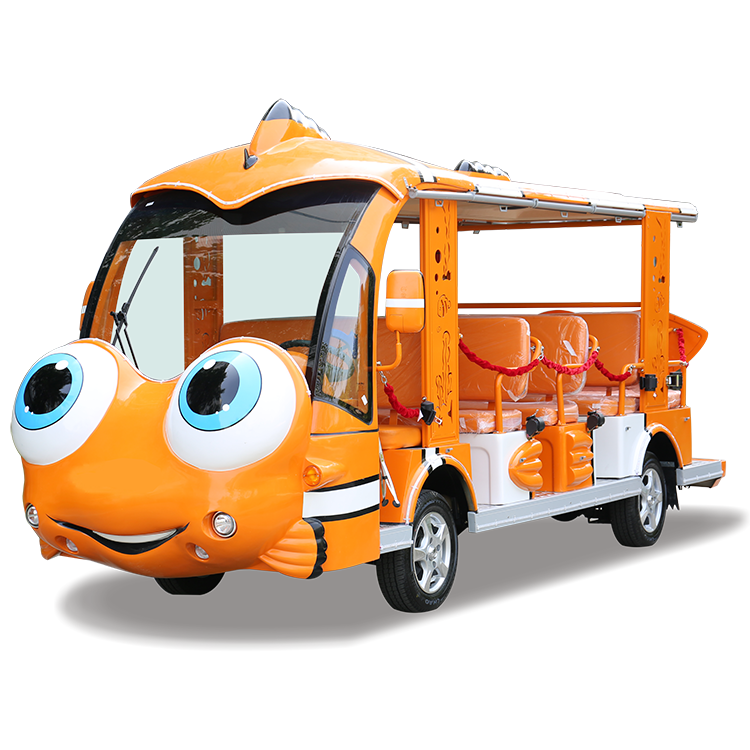

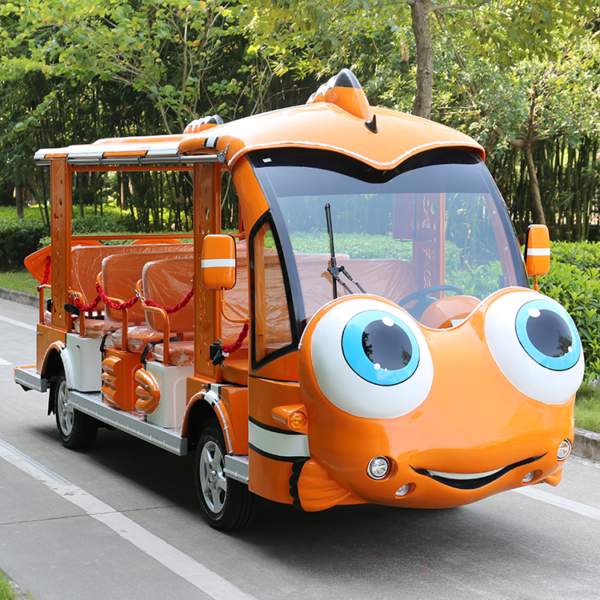

Nimo Design 14 seater Electric Shuttle Bus with CE (DN-14) features:
1. Standard color: White. Attractive design and powerful in appearance, with strong carrying capacity and lower noise.
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure.
3. Small turning radius; and smart steering system; Whole style steel rear axle.
4. Can be easily modified to transportation vehicles.
5. CE certificate for whole carts.
6. Import main parts: Maintenance-free batteries and Curtis controller(From USA).Delta-Q chargers(From Canada).
7. Four wheels hydraulic braking system and independent parking brake.
Model | DN-14 | Max. Speed | 28km/h |
Passenger Capacity | 14 | Max. traveling range | 60-80km |
Battery | 6V*12 | Climbing capacity | 20% |
Motor | 72V5KW/DC or 51V7.5KW/AC | Brake Range | 6.5m |
Controller | 72V400A or 72V550A | Minimum turning radius | 6.5m |
Charger | fully automatic high-frequency charger | Gross Weight | 1300kg |
Tire | 165/70R13 | Carrying capacity | 1120kg |
Ground clearance | 130mm | Steering | Rack&PinionSteering |
Overall dimension(L*w*h) | 4800*1520*2025mm | Qty per container | 2pcs/20FT4pcs/40FT4pcs/40HQ |
brakes | Four wheels hydraulic braking system and independent parking brake | ||
Standard parts | Front and rear lights, Rearview mirrors, Speed meter, Wiper, DC system | ||
Optional parts | AC system, Loudspeaker, CD player, Weather enclosure, Side sunshade curtain, 3 points seat belt for the driver, Alloy wheels, Front disc brake, Power-assisted steering system, Trojan Battery |
Marshell was founded in 2002, it is a world-class electric vehicle designer and manufacturer in China. Our main products are golf car, sightseeing car, e-scooter, utility vehicles, and so on. All items are CE-certified.
Marshell has been recognized by ISO9001/ISO14001, all items are CE certified. Marshell is also the first one who got European EEC certificate in China.
