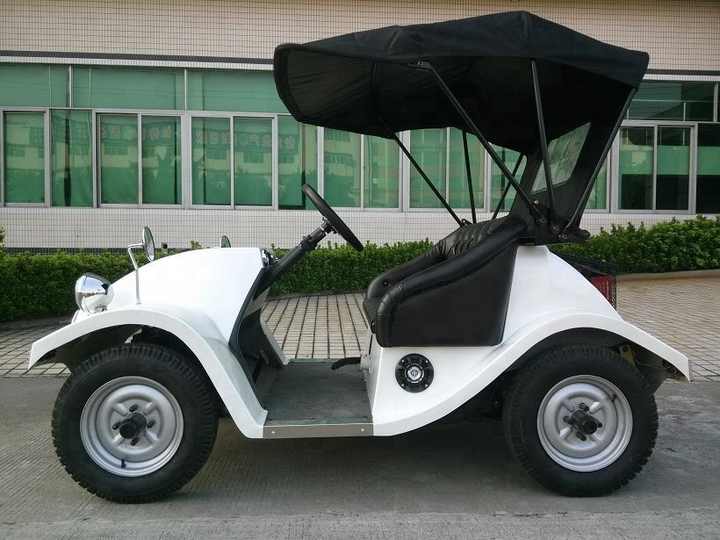

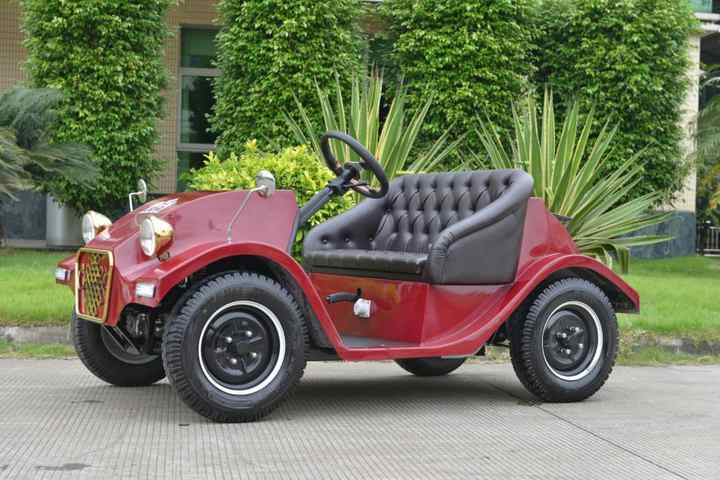

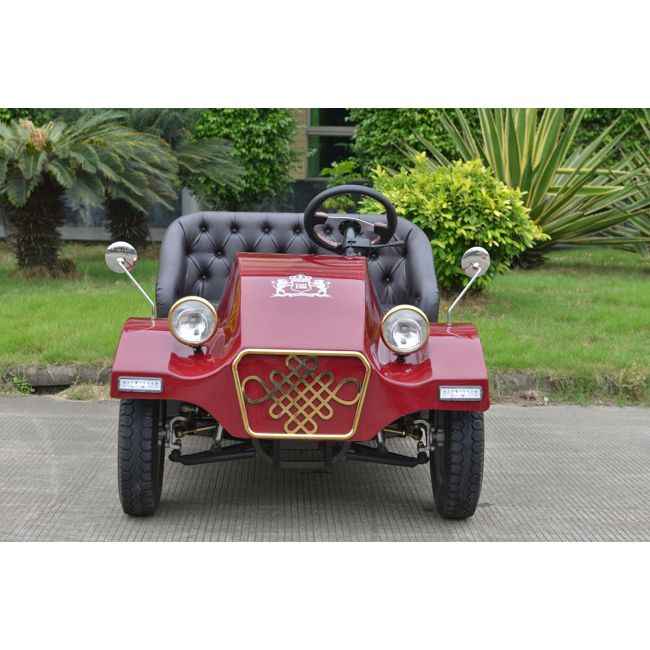

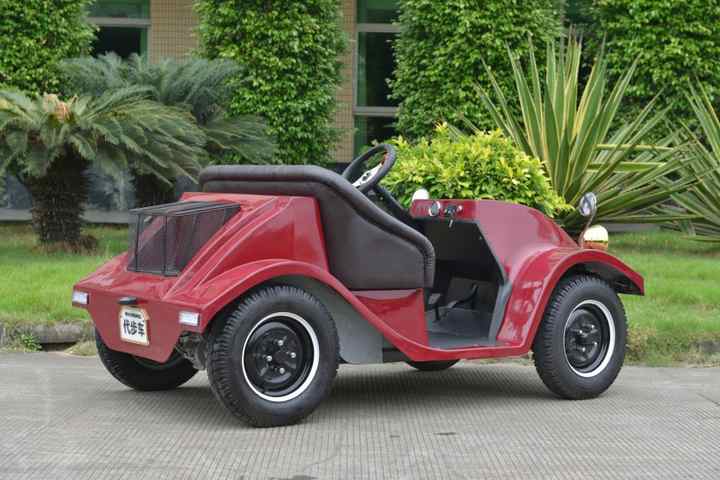

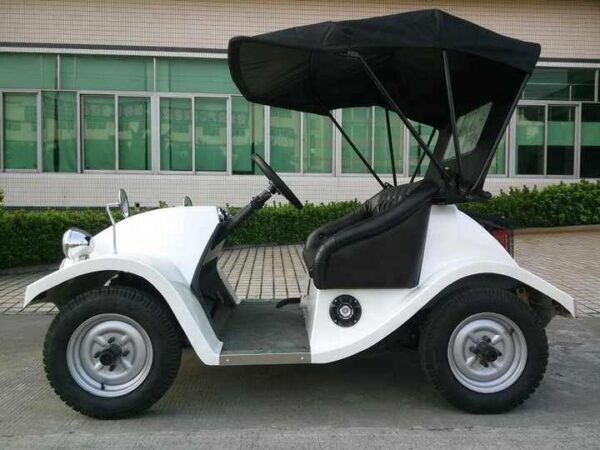

Noble 4 Wheel 2 Seats Classic Mini Electric Golf Car Scooters
$10,500.00
| Type: | Buggy/Golf Carts |
|---|---|
| Seats: | 1-2 |
| Power: | 5kw |
| Power Fuel: | Electric |
| Maximum Speed: | 20-30 km/h |
| Gradeability: | 20-30% |
Product Description
| SPECIFICATION | |||||
| MAIN TECHNICAL PARAMETERS AND PERFORMANCE INDEX OF THE VEHICLE | |||||
| WEIGHT | 430KG | CHARGING TIME | 8-12 hours | ||
| L*W*H (MM) | 2400×1140×1500mm | MAXIMUM MILEAGE | ≥100km | ||
| WHEEL BASE | 1500mm | MINIMUM GAP | 170mm | ||
| FRONT TREAD | 970mm | MIN. BRAKING DISTANCE | ≤2m | ||
| REAR TREAD | 990mm | GRADEABILITY | 30% | ||
| MIN TRUNING RADIUS | 4100mm | MAXIMUM SPEED | 20km/h | ||
| SEATER | 2 SEATS | MAXIMUM BACK SPEED | 9-13km/h | ||
| NOISE | ≤60 | CONTAINER LOADING | 8/20GP, 16/40HQ | ||
| MOTOR | 48V/3KW high efficiency high speed AC motor | ||||
| CONTROLLER | CMOS system of infinitely variable speed, with the function of automatic pretection fall slippery, downhill speed limited, personalized program design |
||||
| BATTERY | MF 6*8V large capacity deep cycle traction battery | ||||
| CHARGER | auto high-frequency high pulse charger, input voltage of AC 110V/220V 50hz, output DC 48V 25Ah, with CE certificate | ||||
| ACCELERATOR | Original inductive, non-contract variable speed system non-contract | ||||
| CHASSIC | Frame type, high strength steel structure, thermal spraying Zinc and dual antirust paint processing |
||||
| COVER PANEL | A high qualified steel plate staming molding, automotive sheet metal standard coating process, with impact resistance function |
||||
| REAR AXLE | Motor direct type integral rear axle, with the mail reduction and differential | ||||
| BRAKE SYSTEM | Double circuit four-wheel hydraulic brake (front disc rear drum), and mechanical parking (manual) |
||||
| FRONT SUSPENSION SYSTEM | Muti-plate leaf spring and hydraulic damping cylinder typre independent suspension | ||||
| REAR SUSPENSION SYSTEM | Muti-plate leaf spring and hydraulic damping cylinder typre independent suspension | ||||
| STEERING SYSTEM | Single stage gear rack steering system, with the function of steering self-reture | ||||
| LIGHT SYSTEM | Headlights, front turn signal lamp and rear combination lights, buzzer, electric horn | ||||
| SEATING SYSTEM | One-piece seat system, confirm to the principle of ergonomics, comfortable seating, emulation leather seats | ||||
| CELLING | Black canvas, with light weight, waterproof, UV protection etc. | ||||
| TYRE | Vacuum meridian mini car tyre, specification: 4.50-12 | ||||
| DASHBOARD | With the ignition switch, electricity meter, direction selector switch, turning signals, brake lights, horn meter, etc | ||||
| FRONT WINDSHIELD | Foldable, high strength organic glass | ||||
| SELECTION FITTING | Rain curtain, ECU electric power steering system, radio, luxury leather seats | ||||
PACKAGE & DELIVERY
SKD package by Iron frame
Leatheroid package outside
20 days delivery time
30 minutes to Nansha Port and 40 minutes to Huangpu Port
