Product Description
SPECIFICATION
| MOTOR | 48V/5KW high efficiency high speed AC motor | ||||
| CONTROLLER | CMOS system of infinitely variable speed, with the function of automatic pretection fall slippery, downhill speed limited, personalized program design |
||||
| BATTERY | MF 6*8V large capacity deep cycle traction battery | ||||
| CHARGER | auto high-frequency high pulse charger, input voltage of AC 110V/220V 50hz, output DC 48V 25Ah, with CE certificate | ||||
| ACCELERATOR | Original inductive, non-contract variable speed system non-contract | ||||
| CHASSIC | Frame type, high strength steel structure, thermal spraying Zinc and dual antirust paint processing |
||||
| COVER PANEL | A high qualified steel plate staming molding, automotive sheet metal standard coating process, with impact resistance function |
||||
| REAR AXLE | Motor direct type integral rear axle, with the mail reduction and differential | ||||
| BRAKE SYSTEM | Double circuit four-wheel hydraulic brake (front disc rear drum), and mechanical parking (manual) |
||||
| FRONT SUSPENSION SYSTEM | Muti-plate leaf spring and hydraulic damping cylinder typre independent suspension | ||||
| REAR SUSPENSION SYSTEM | Muti-plate leaf spring and hydraulic damping cylinder typre independent suspension | ||||
| STEERING SYSTEM | Single stage gear rack steering system, with the function of steering self-reture | ||||
| LIGHT SYSTEM | Headlights, front turn signal lamp and rear combination lights, buzzer, electric horn | ||||
| SEATING SYSTEM | One-piece seat system, confirm to the principle of ergonomics, comfortable seating, emulation leather seats | ||||
| CELLING | Black canvas, with light weight, waterproof, UV protection etc. | ||||
| TYRE | Vacuum meridian mini car tyre, specification: 6.00-13T | ||||
| DASHBOARD | With the ignition switch, electricity meter, direction selector switch, turning signals, brake lights, horn meter, etc | ||||
| FRONT WINDSHIELD | Foldable, high strength organic glass | ||||
| SELECTION FITTING | Rain curtain, ECU electric power steering system, radio, luxury leather seats | ||||
| MAIN TECHNICAL PARAMETERS AND PERFORMANCE INDEX OF THE VEHICLE | |||||
| WEIGHT | 770KG | CHARGING TIME | 8-12 hours | ||
| L*W*H (MM) | 3150*1520*1950 | MAXIMUM MILEAGE | ≥100km | ||
| WHEEL BASE | 2390mm | MINIMUM GAP | 170mm | ||
| FRONT TREAD | 1290mm | MIN. BRAKING DISTANCE | ≤4.5m | ||
| REAR TREAD | 1220mm | GRADEABILITY | 30% | ||
| MIN TRUNING RADIUS | 4100mm | MAXIMUM SPEED | 24-30km/h | ||
| SEATER | 5 SEATS | MAXIMUM BACK SPEED | 9-13km/h | ||
| CHARGING TIME | 8-12 hours | CONTAINER LOADING | 2/20GP, 9/40HQ | ||
PRODUCT DETAILS

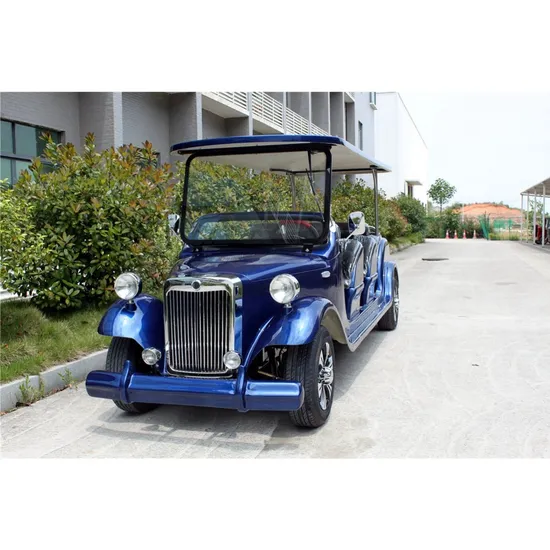

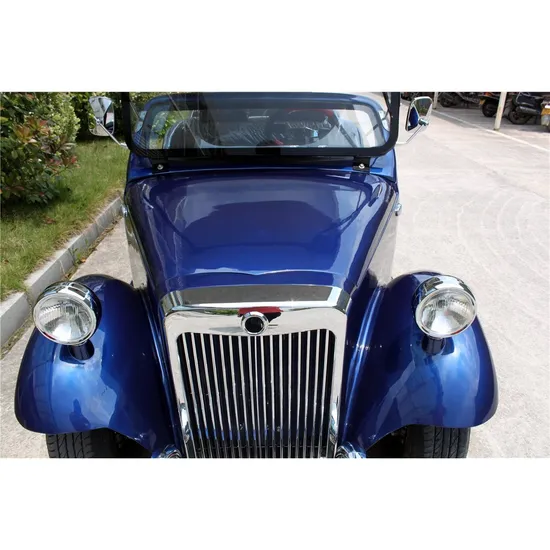

Royal grace presented in chrome plate front shades and headlingts in heroic style
Console easy for driving brings freedom for movement

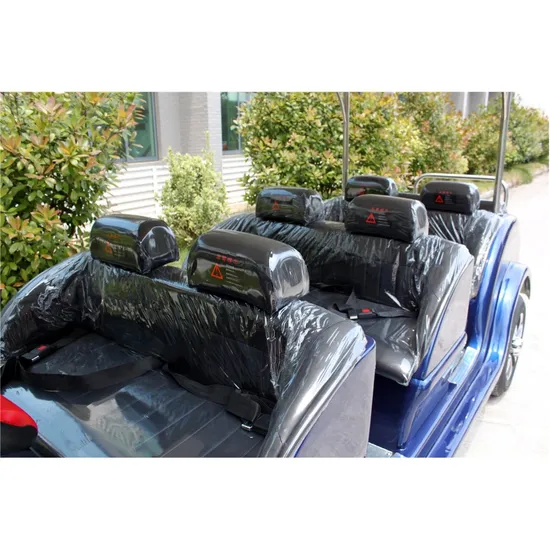

Noble leather seats, comfortable in seating
Big famous vacuum tire fullybears the strong load, and make the dring steadly
Good confort suspension system
Electric prower steering system ECU
